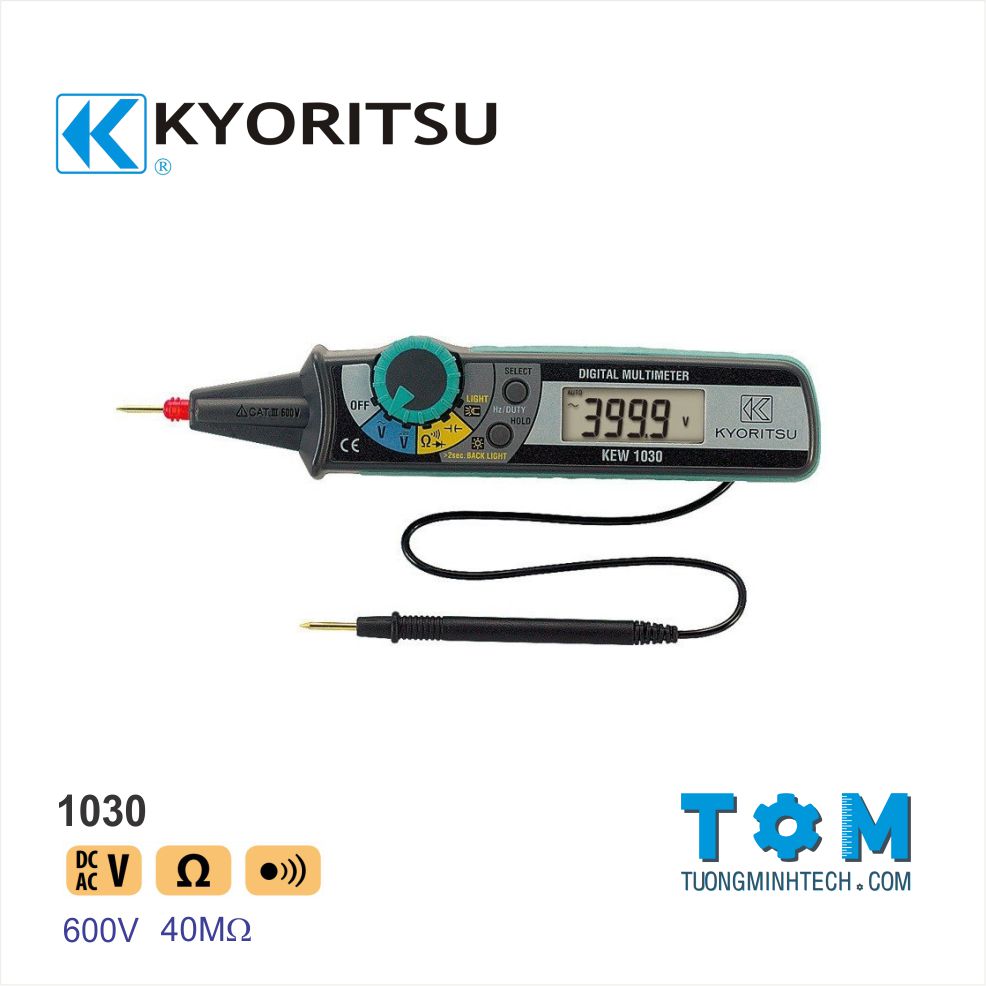

Đồng hồ vạn năng Kyoritsu 1030
Hãng sản xuất: Kyoritsu - Nhật Bản
Xuất xứ: Made in ThaiLand
Bảo hành chính hãng 12 tháng
Model: 1030
Hãng sản xuất: Kyoritsu - Nhật Bản
Xuất xứ: Made in ThaiLand
Bảo hành chính hãng 12 tháng
Chức năng đo:
THÔNG SỐ KỸ THUẬT CHI TIẾT KYORITSU 1030


DC V | 400m/4/40/400/600V (5 Range auto) |
AC V | 4/40/400/600V (4 Range auto) |
Ω | 400/4k/40k/400k/4M/40MΩ (6 Range auto) |
Continuity buzzer | Buzzer sounds when resistance is 120Ω or less. |
Diode test | Test voltage approx. 0.3 - 1.5V |
Capacitance | 50n/500n/5µ/50µ/100µF (5 Range auto) |
Frequency | 5/50/500/5k/50k/200kHz |
DUTY | 0.1 - 99.9% |
Measurement functions | The measured value can be hold by pressing Data hold button |
Other functions | When the battery voltage drops to 2.4V±0.2V or less |
Applicable standards | IEC 61010-1: 2001 CAT III 600V |
Power source | Button type battery LR44 (SR44)1.5V × 2 |
Dimensions | 190(L) × 39(W) × 31(D)mm |
Weight | Approx. 100g (including batteries |
Included Accessories | 9130 (Carrying case) |
